QCP-33N

QE QUALITY condensate pump features: 20’ lift standard versus 16’ from other pumps, stainless steel hang tabs, indicator lights, pan pill dispenser, rubber feet, overflow safety switch, 4’ remote shutoff leads, and instruction manual included. The QE QUALITY condensate pump specifications include: rated Voltage: 208-230 V. / 60 Hz, input type: NEMA 6-15 plug, product weight: 5 lbs., rated current draw: 1.0 AMPS, product dimensions: 11.8” L x 5.9” W x 6.7” H, inlet height from Base: 4.4” (1.75” low profile), and temp. rating (continuous  duty): 140° F / 60° C.

View More

$0.00

Product Description

QE QUALITY condensate pump features: 20’ lift standard versus 16’ from other pumps, stainless steel hang tabs, indicator lights, pan pill dispenser, rubber feet, overflow safety switch, 4’ remote shutoff leads, and instruction manual included. The QE QUALITY condensate pump specifications include: rated Voltage: 208-230 V. / 60 Hz, input type: NEMA 6-15 plug, product weight: 5 lbs., rated current draw: 1.0 AMPS, product dimensions: 11.8” L x 5.9” W x 6.7” H, inlet height from Base: 4.4” (1.75” low profile), and temp. rating (continuous  duty): 140° F / 60° C.

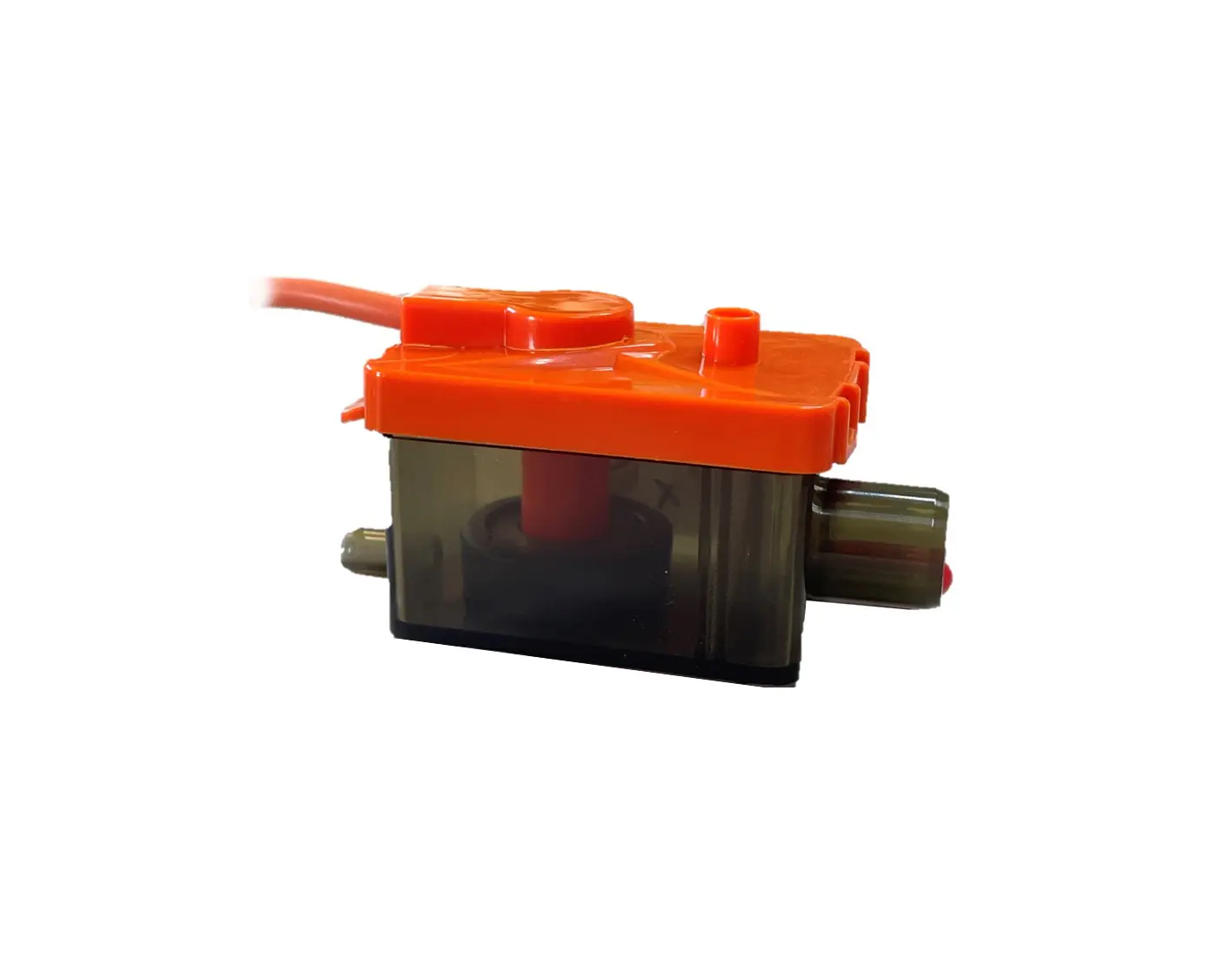

QE Quality Mini Condensate Pump, Model QCP-33N low noise control, compact modern design, suitable for all Air Conditions, Dual Voltage 100-230V / 50-60Hz, and Built-in Alarm Circuit.

FEATURES: Dual Voltage, 100-230V / 50-60Hz. Suction lift Max. 2m (6.5ft). Discharge head: Max. 10m (33ft. Flow Rate: Max.12L/h (3.2GPH). Tank Capacity 35cc. Mini Splits up to: 10KW (30,000btu/hr). Sound Level: <16dbB(A). Ambient Temperature: 0C-50C

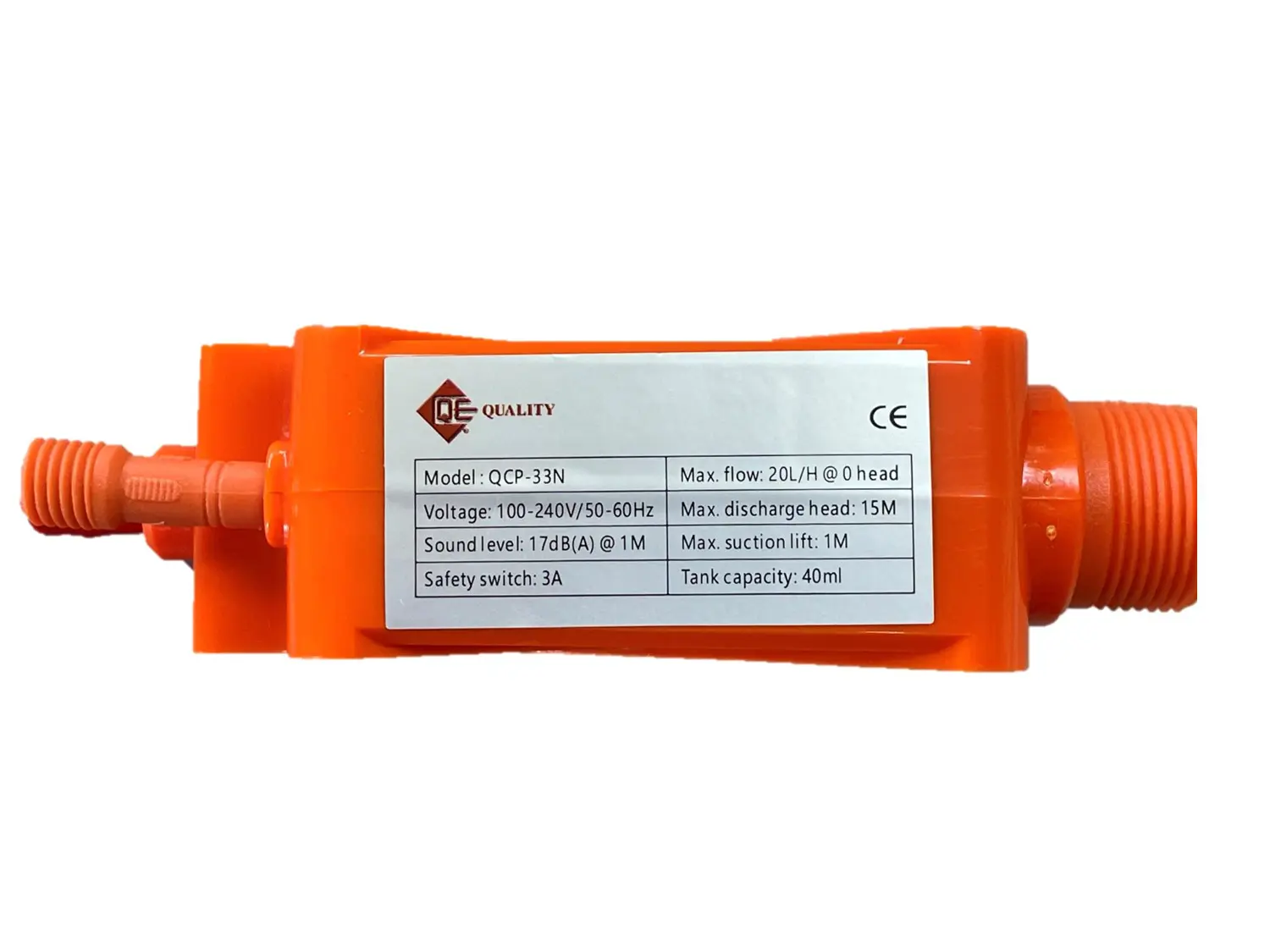

Model QCP-33N
Voltage 110-230
Max Flow Rate 20 L/H
Description Dual Voltage & Max 15M (Approx. 49ft) Discharge Head
Hz 50/60
Minimum 1
Master Carton 25
